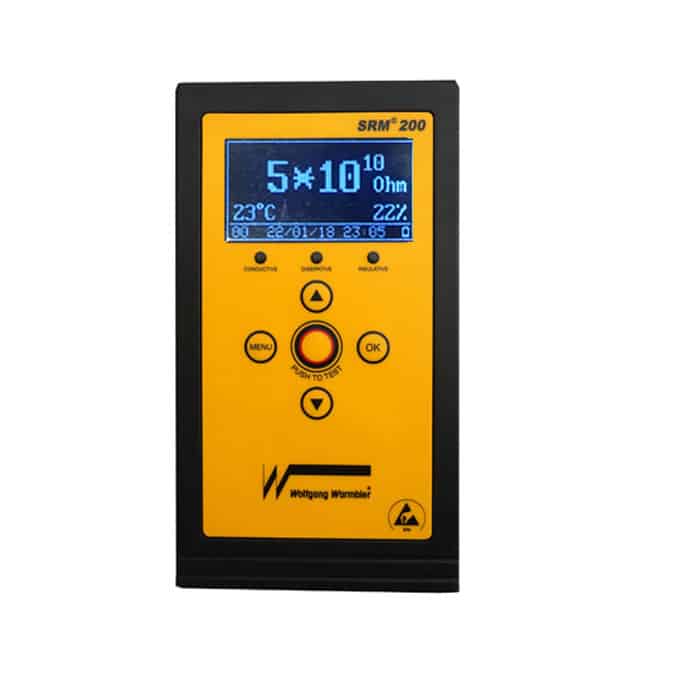

Transforming Technologies SRM200 Resistivity Meter - 7100.SRM200.K

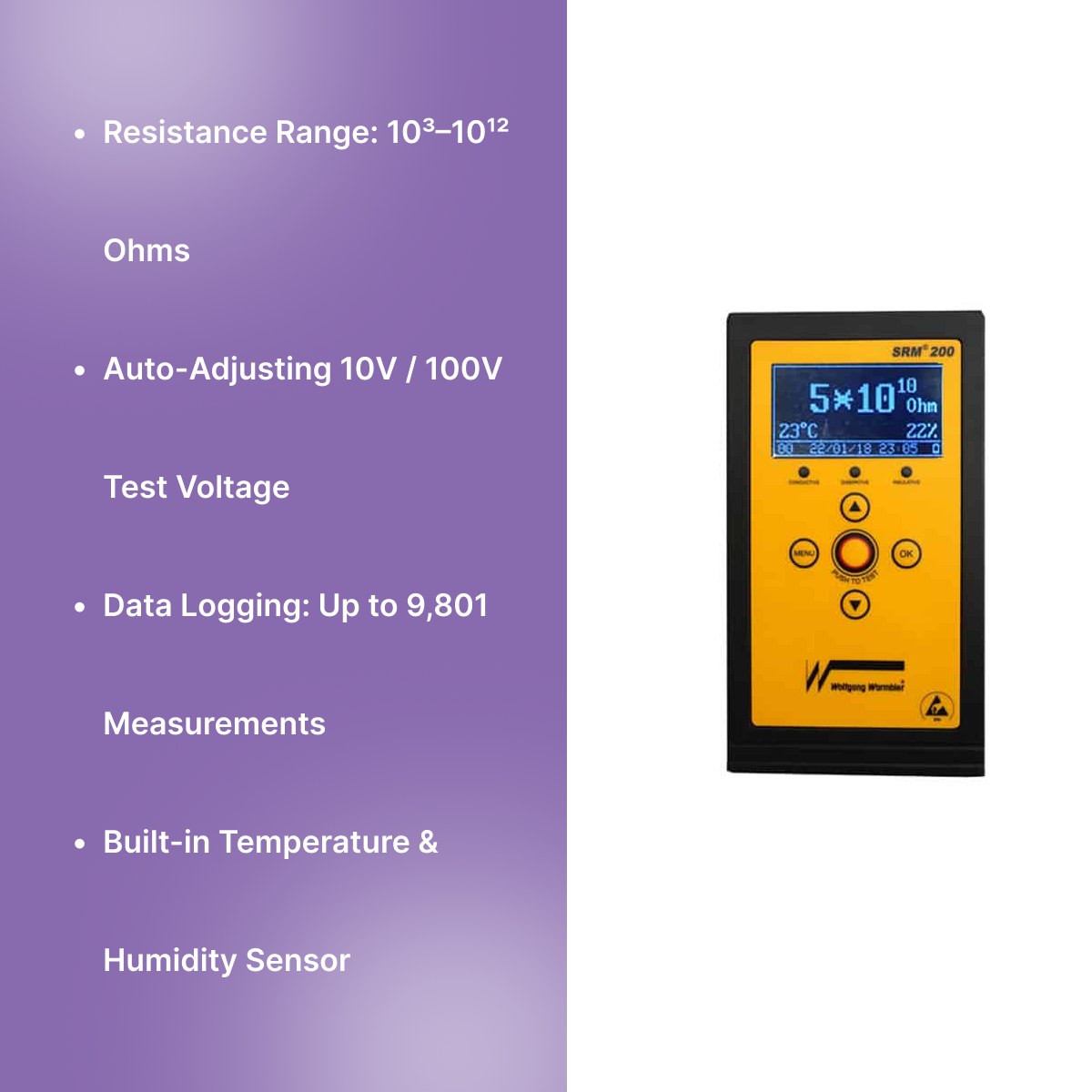

• Key performance benefit: Measures surface resistance to classify materials as conductive, dissipative, or insulative across a wide range of 10³ to 10¹² ohms, enabling accurate ESD surface verification in controlled environments.
• Material & construction: Features built-in parallel resistivity probes fitted with conductive rubber for reliable surface contact. Compatible with external probes, including 5 lb disc probes, handheld probe, two-point probe, and concentric ring probes for expanded testing flexibility.
• Risk reduction/compliance benefit: Enables systematic verification of ESD control surfaces, including workbenches, floors, chairs, carts, clothing, and packaging materials, reducing the risk of undetected non-compliant surfaces within an EPA.
• Protection level: Measurements performed with external electrodes meet the requirements of ANSI ESD S20.20 and IEC 61340-5-1.
• Comfort & usability: Automatically selects between 10V and 100V test voltage based on material being tested. The LED display provides immediate pass/fail classification. Stores up to 9,801 readings internally with USB data export and includes report-building software.
• Safety & compliance assurance: Meets ANSI ESD S20.20 and IEC 61340-5-1 when used with external measuring electrodes.

Recommended For

• ESD workstation surface verification
• Floor and chair resistance testing
• Packaging material compliance checks
• Cart and equipment resistivity measurement
• Clothing and garment ESD testing
• ESD program audits and compliance documentation

Primary Industries

• Electronics Manufacturing
• Semiconductor Production
• ESD Program Management
• Quality Assurance & Compliance

Standards and Certifications

• ANSI ESD S20.20 (with external measuring electrodes)
• IEC 61340-5-1 (with external measuring electrodes)
