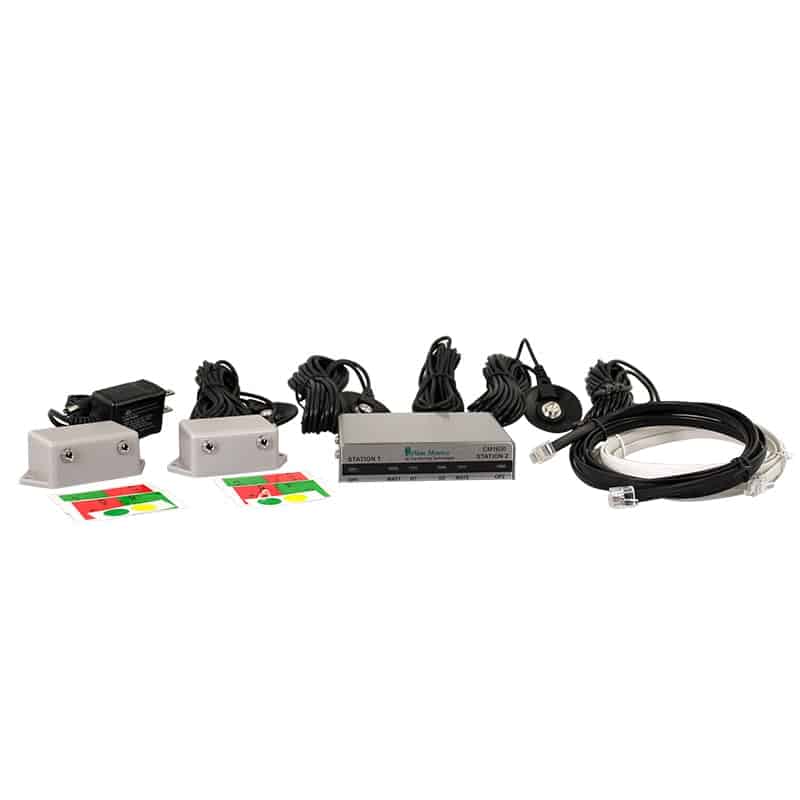

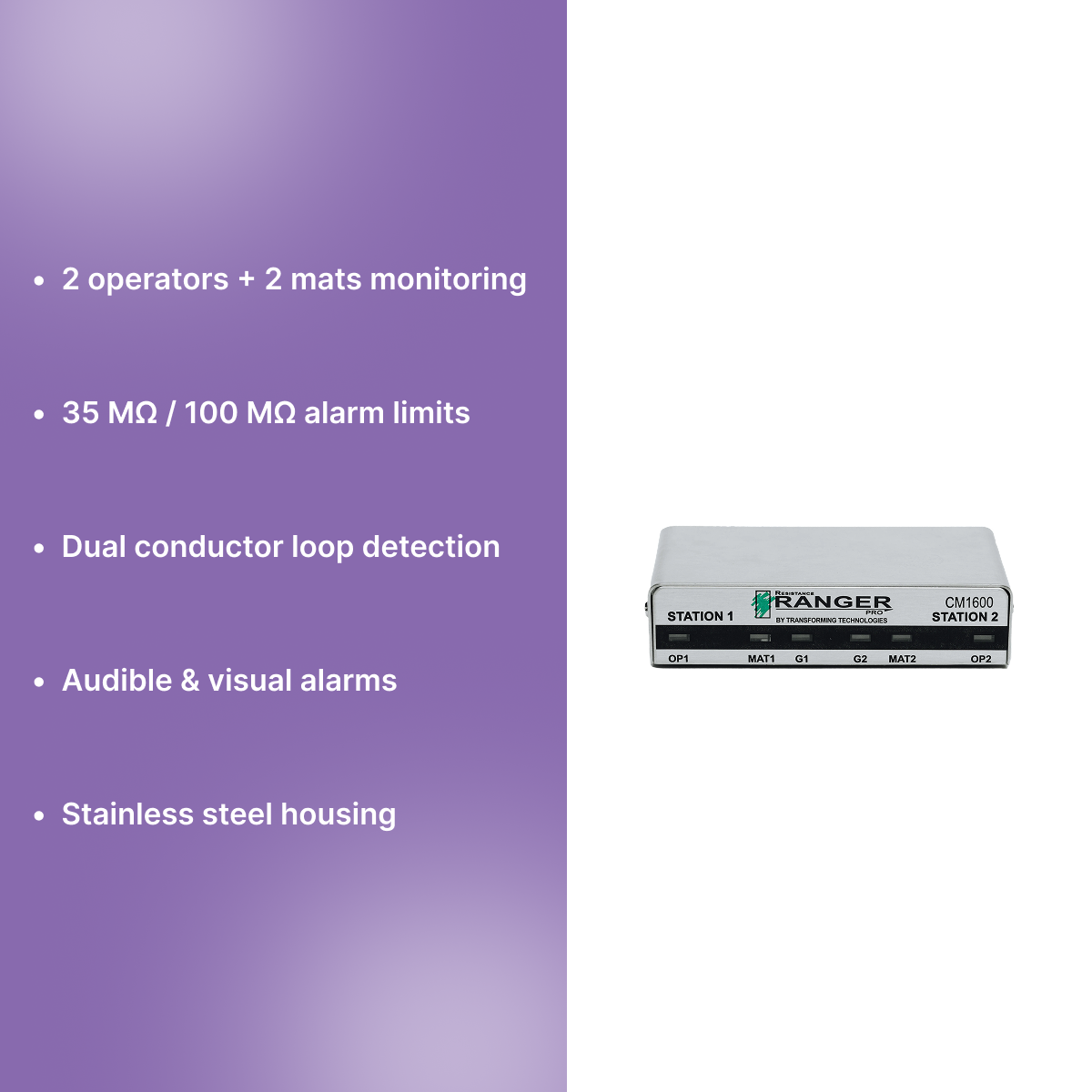

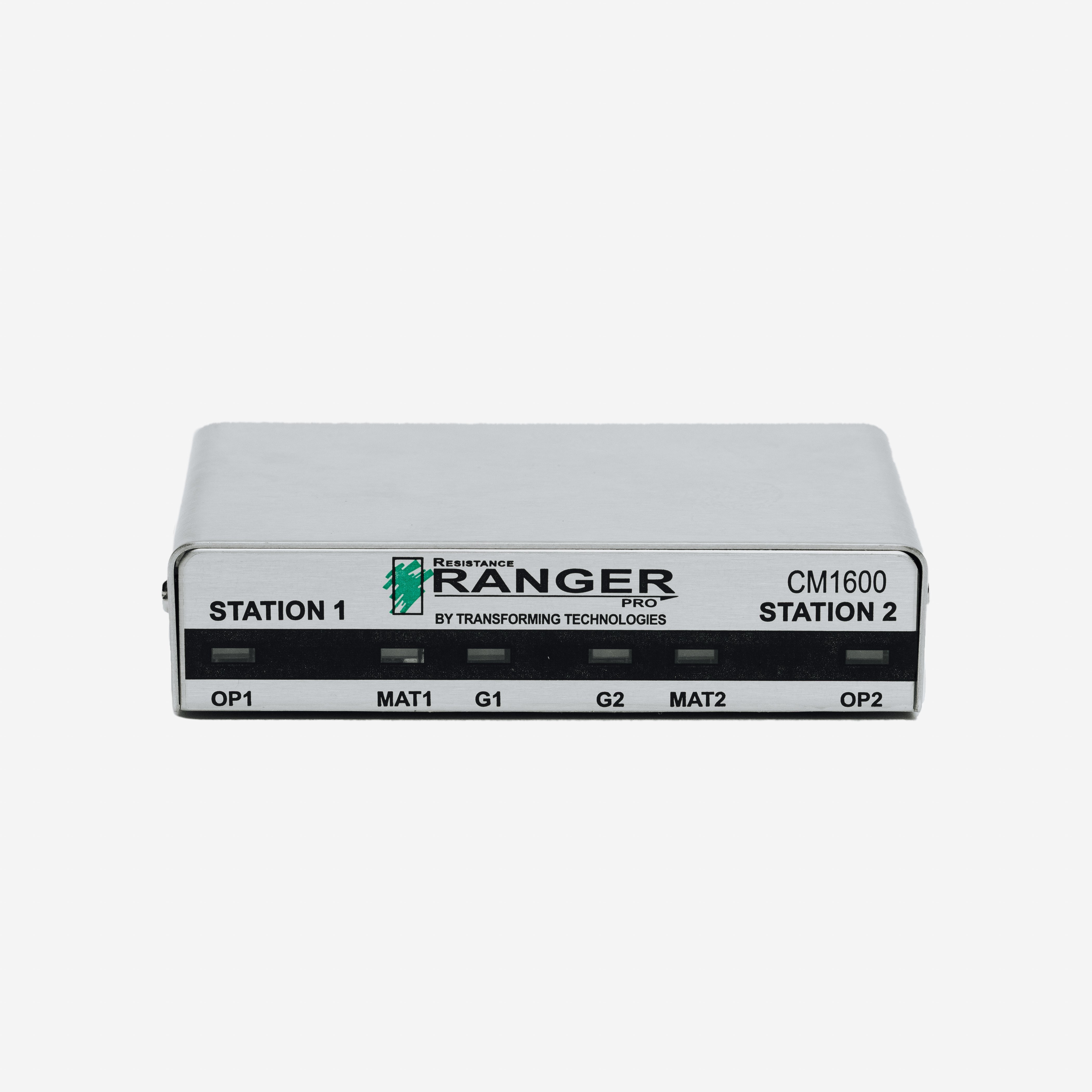

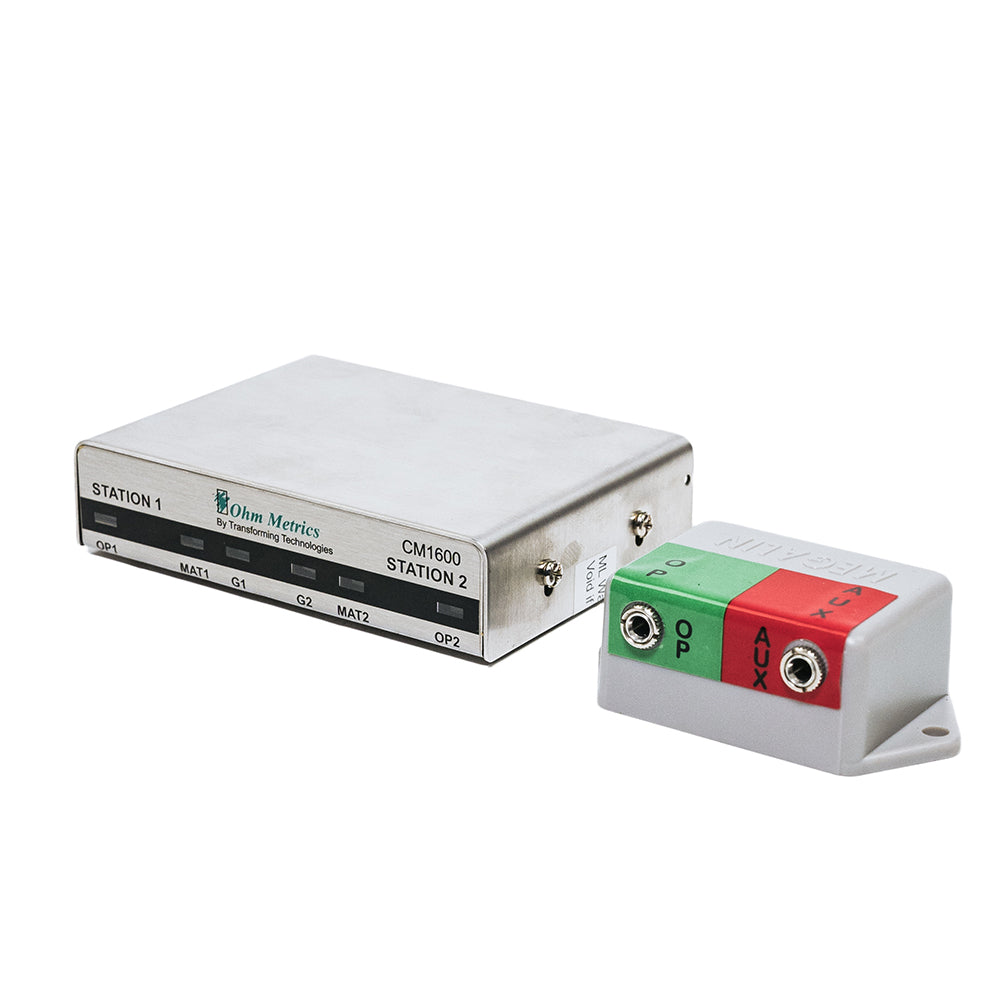

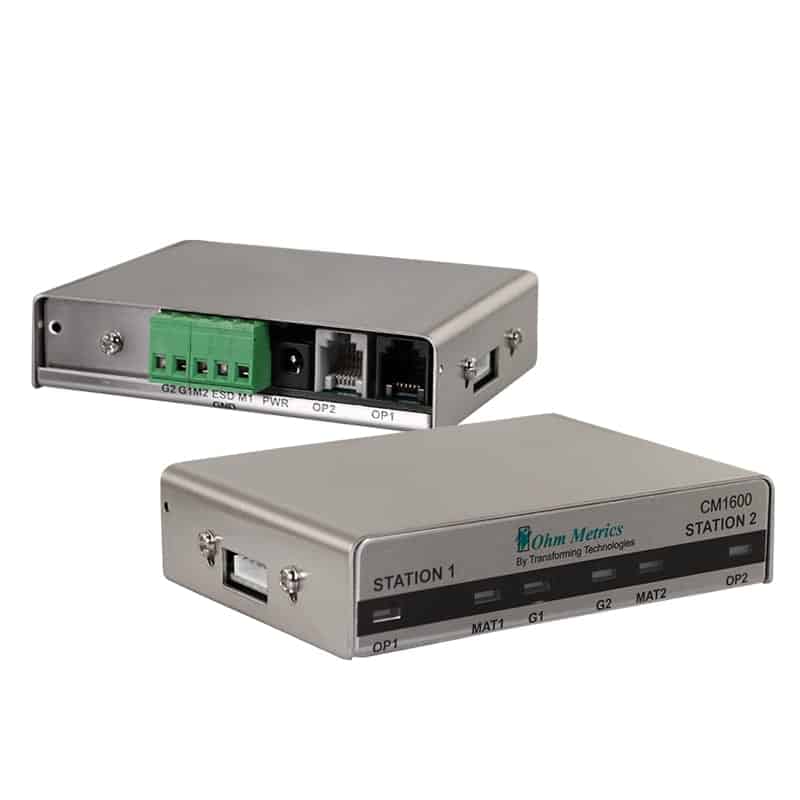

Transforming Technologies Dual Conductor Resistance Monitor, 2 Operators + 2 Mats - CM1600

• Key performance benefit: Continuously monitors grounding integrity for two operators and two work surfaces, ensuring immediate detection of resistance faults to maintain ESD control.
• Material & construction: Constructed with a stainless steel case and remote jacks, supporting dual conductor wrist strap systems for continuous loop resistance monitoring.
• Risk reduction/compliance benefit: Detects open circuits and out-of-limit resistance conditions in real time, reducing the risk of electrostatic discharge events and product damage.
• Protection level: Triggers alarms when operator resistance exceeds 35 megohms or mat resistance exceeds 100 megohms. Also detects low resistance faults.
• Comfort & usability: Supports dual wire wrist straps, maintaining a continuous path to ground even if one conductor is severed.
• Safety & compliance assurance: Meets or exceeds ANSI ESD-S20.20 and ESDA Standard 1.1-2006 requirements.

Recommended For

• Hard drive manufacturing
• GMR head testing
• Electronics assembly
• Aerospace applications
• Military applications
• Semiconductor fabrication

Primary Industries

• Electronics Manufacturing
• Semiconductor
• Aerospace
• Military

Standards and Certifications

• ANSI ESD-S20.20
• ESDA Standard 1.1-2006
