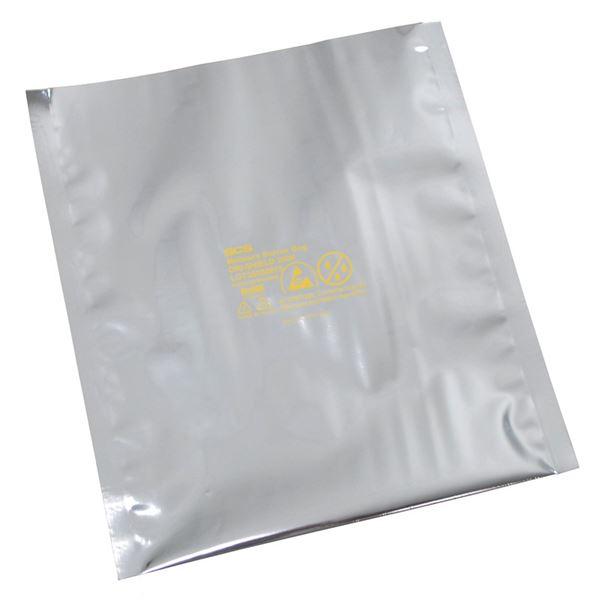

SCS Moisture Barrier Bag Dri-Shield 2000, 12x16, 100 Ea - 7001216

$92.59
Add to wishlist
Add to compare
SKU: 7001216
California prop 65
Description
  • Key performance benefit: The SCS Moisture Barrier Bag Dri-Shield 2000 is engineered to protect moisture- and electrostatic discharge (ESD) sensitive items, such as surface mount technology (SMT) devices. Its 0.03 grams moisture vapor transmission rate (MVTR) ensures optimal dry packing for moisture-sensitive devices.
  • Material & construction: Constructed from a 0.0036" (3.6 mil) thick laminate, this bag combines multiple layers of aluminized polyester and polyethylene. This robust construction provides enhanced durability and protection.
  • Risk reduction/compliance benefit: Designed to meet ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, and EIA 583 standards, this bag ensures compliance with industry requirements for static control and moisture protection.
  • Protection level: With a puncture strength average of over 20 pounds, the bag offers substantial physical protection. It also meets ANSI/ESD S11.4 Level 3 for discharge shielding, safeguarding contents from ESD events.
  • Comfort & usability: The dissipative inner and outer surfaces, with resistance values from 1 x 10^4 to < 1 x 10^11 ohms, allow grounding when handled by a grounded operator or placed on a grounded surface.
  • Safety & compliance assurance: The bag is printed with the ESD protective symbol and lot code information, meeting ANSI/ESD S541 for quality control. It is also lead-free and compliant with RoHS 2, REACH, and Conflict Minerals.

Recommended For

  • Dry packing of SMT devices
  • ESD-sensitive component storage
  • Electronics manufacturing
  • Semiconductor industry
  • Aerospace applications
  • Telecommunications equipment
  • Medical device protection
  • Military electronics

Product Details

  • Product number: 7001216
  • Dimensions: 12x16 inches
  • Thickness: 0.0036 inches (3.6 mil)
  • MVTR: 0.03 grams
  • Puncture Strength: >20lb average
  • Energy Penetration: <10 nJ
  • Surface Resistance: Rs 1 x 10^4 to < 1 x 10^11 ohms
  • Compliance: ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, JESD625-A, EIA 583
  • Manufacturing: Made in the United States
  • Safety: California Prop 65 warning

Primary Industries

  • Electronics manufacturing
  • Semiconductor industry
  • Aerospace
  • Telecommunications
  • Medical device manufacturing

Standards and Certifications

  • ANSI/ESD S20.20
  • ANSI/ESD S541
  • EIA 541
  • JESD625-A
  • EIA 583
Reviews

FAQs

How should the SCS Moisture Barrier Bag Dri-Shield 2000 be stored when not in use?

Store the bags in a clean, dry environment away from direct sunlight and extreme temperatures. Ensure they are kept in their original packaging to maintain their protective properties. Avoid exposure to moisture or contaminants that could compromise their effectiveness.

Is this bag suitable for long-term storage of sensitive components?

Yes, the Dri-Shield 2000 is designed for long-term storage of moisture and ESD-sensitive components. Its low moisture vapor transmission rate and high puncture strength make it ideal for protecting sensitive items over extended periods.

What is the best method for sealing these bags?

For optimal protection, use a heat sealer to close the bags. Ensure the seal is uniform and complete to maintain the integrity of the moisture and ESD barrier. Follow the heat sealer manufacturer's instructions for the best results.

Are these bags reusable after opening?

While the bags can be reused, their protective properties may diminish with each use. If reusing, inspect for any damage or wear, and ensure they are resealed properly to maintain protection against moisture and ESD.

What should I do if I encounter a defect in the bag?

If you find a defect, contact your supplier immediately for assistance. Provide details of the issue and any relevant lot code information. Most suppliers will offer a replacement or refund policy for defective products, ensuring customer satisfaction.
